Move every critical flow.

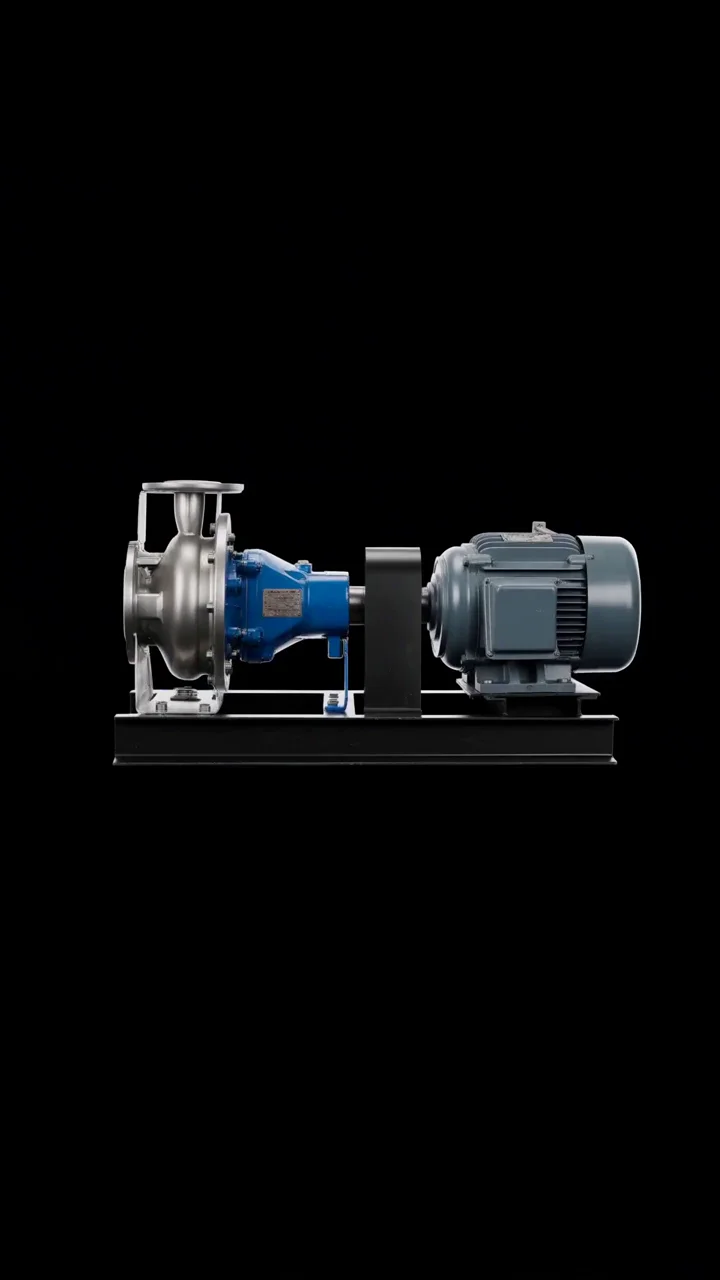

Horizontal, single stage volute pumps for clean water, DM water and compatible process liquids. The back pull-out construction allows rotor removal without disturbing the connected pipework.

Capacity

Up to 600 m³/h

Total head

Up to 65 m

Speed

Up to 3,600 rpm

Temperature

Up to 160°C, with suitable sealing and cooling

Casing pressure

16 bar at 10–100°C; 8 bar at 100–160°C

Construction

DIN 24255 dimensions; end suction, top centreline discharge

Flanges

DIN 2532/2533; ANSI/BS options

Sealing

Soft packing or optional mechanical seal

Maintenance

15 pump types, 2 shaft sizes; back pull-out design

Applications
Water treatment, process water, beverages and chemically compatible industrial transfer.

Temperature, suction pressure and shut-off head must be checked together. Aggressive liquids require supplier approved materials and seals.

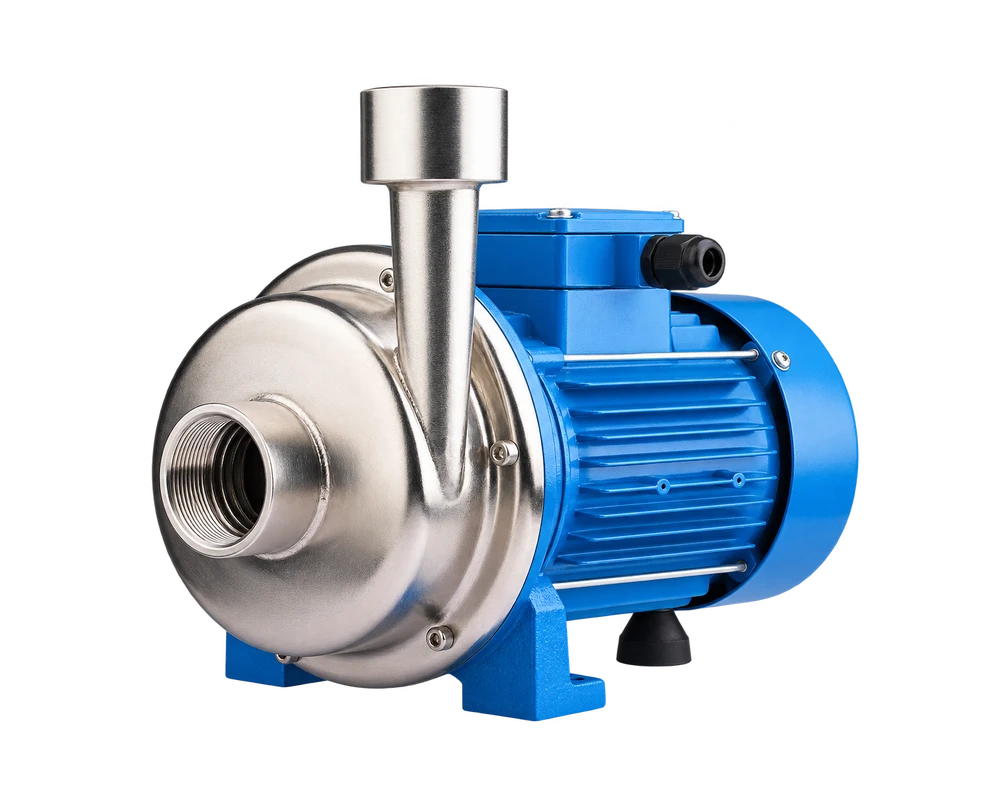

A compact single impeller range with press formed stainless steel hydraulics and a closed radial impeller. Suitable for clean water transfer, pressure boosting and treated effluent duties where the liquid is compatible.

Wetted casing, back plate and impeller

AISI 304

Motor range

0.5–5 hp across the listed models

Listed flow points

1–24 m³/h, depending on model

Listed head points

10–43 m, depending on flow and model

Mechanical seal

Carbon/ceramic with neoprene elastomer

Fasteners

SS304

Bracket

Cast iron, non-wetted

Motor supply

Single phase 220 V or three phase 415 V; dependent on the selection

Applications
Cooling towers, clean water supply, washing, DM water, garden irrigation and treated effluent.

Flow and head must be read from the individual model curve. The largest flow and highest head do not occur together.

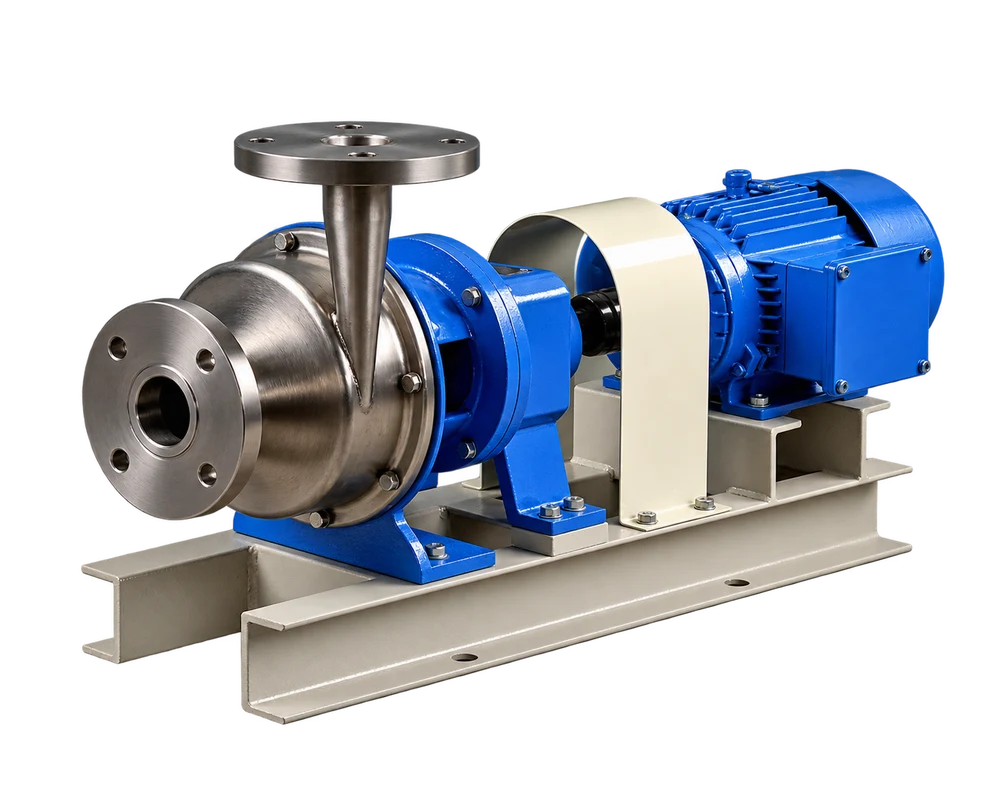

Stainless steel centrifugal pumps for water treatment and compatible process liquids. Choose a compact stub shaft monobloc or a separately coupled drive to suit access, maintenance and installation requirements.

Wetted material options

SS304 or SS316

Drive arrangements

Stub shaft monobloc or long shaft coupled

Motor option

Flameproof motor versions, subject to area classification

Hydraulic selection

Model specific flow, head and motor rating

Seal selection

To suit the liquid, concentration and temperature

Applications
Process water, food and beverage utilities, water treatment and compatible chemical transfer.

Hygiene and sanitary configurations require a separate assessment. Finish, connections, cleanability and any compliance requirements must be agreed before selection; no sanitary certification is assumed.

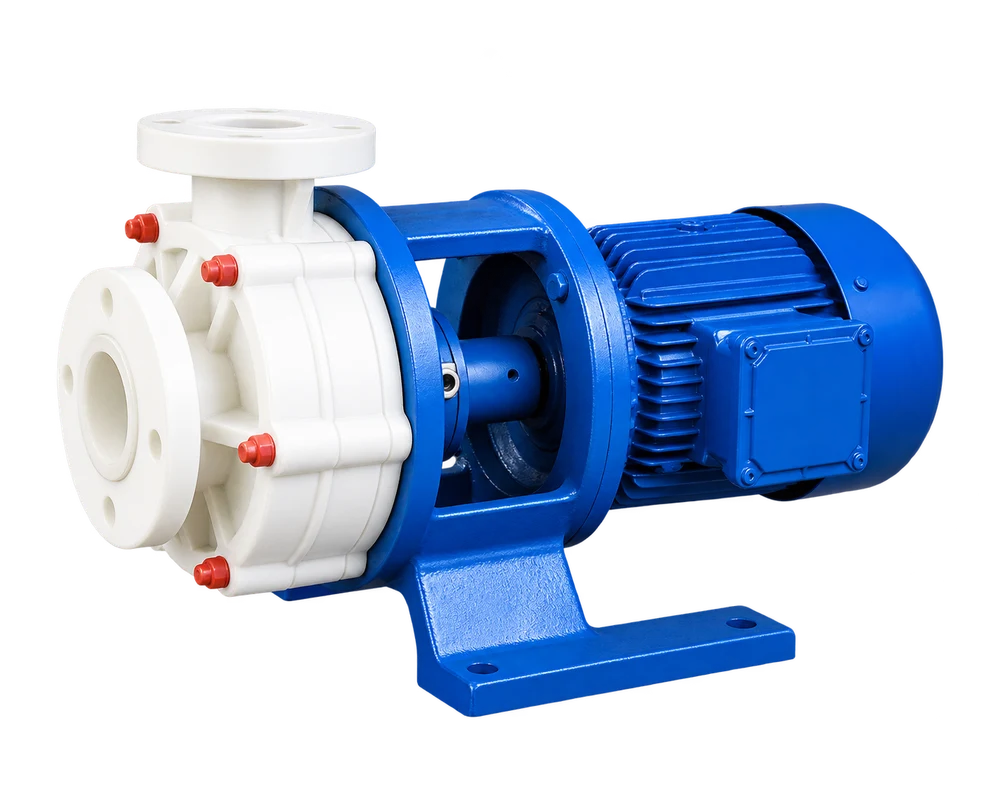

Polypropylene pumps for acid, alkali and other chemical transfer duties after compatibility assessment. Monobloc, coupled and bare shaft arrangements provide flexibility for chemical dosing rooms and effluent treatment plants.

Pump material

Polypropylene

Configurations

Monobloc, coupled and bare shaft

Motor option

Flameproof monobloc configuration available

Alternative materials

Teflon/PVDF coupled versions listed by the supplier

Flow, head and power

Confirmed against the selected model curve

Compatibility check

Liquid, concentration, temperature, solids and seals

Applications
Chemical transfer, textile processing and ETP chemical handling lines.

Flow, head and power must be confirmed for the selected model. We size the pump from your operating requirements.

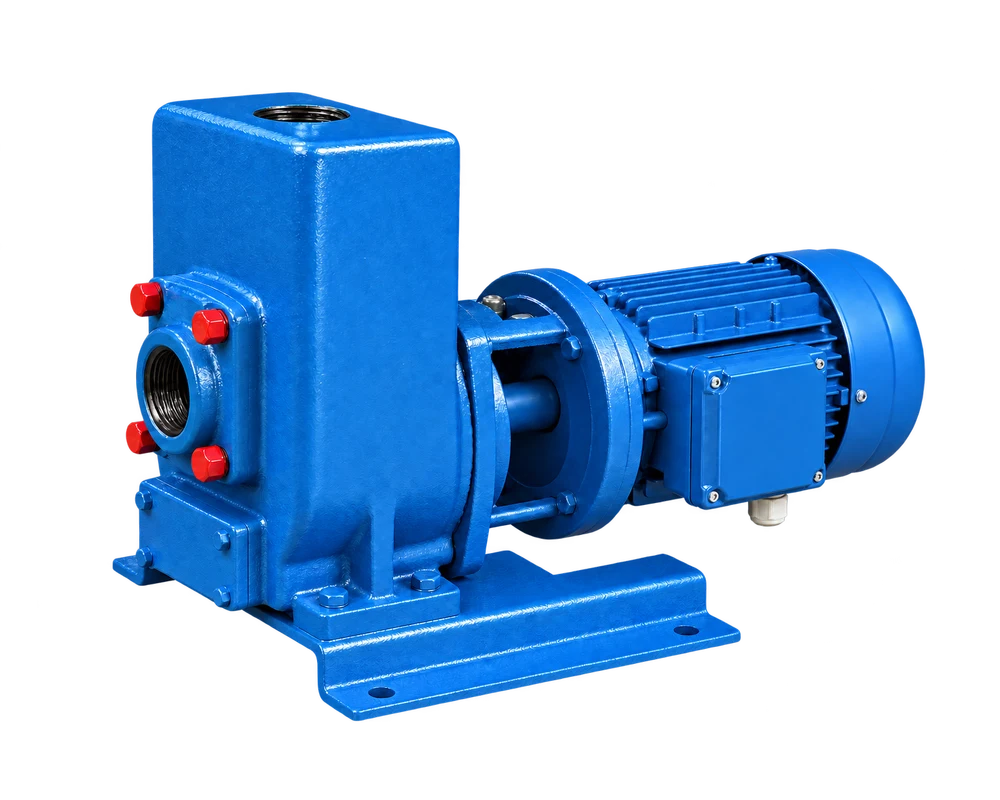

A wide passage impeller and back pull-out construction support wastewater and sludge transfer duties. Self-priming performance depends on the suction arrangement, liquid and installation conditions.

Capacity

Up to 270 m³/h

Head

Up to 57 m

Suction head

Up to 8 m under suitable conditions

Solids passage

Up to 40 mm diameter

Casing and impeller options

Cast iron, SS304, SS316 or bronze

Shaft options

EN8, SS304 or SS316

Seal options

Carbon/ceramic or TC/TC

Elastomer options

NBR, Viton or PTFE

Drive options

Motor coupled, belt driven or engine driven

Applications
Sewage transfer, effluent handling, drainage and compatible sludge duties.

Confirm solids content, particle size, viscosity, suction lift and NPSH. A seal reservoir does not mean the pump can run dry.

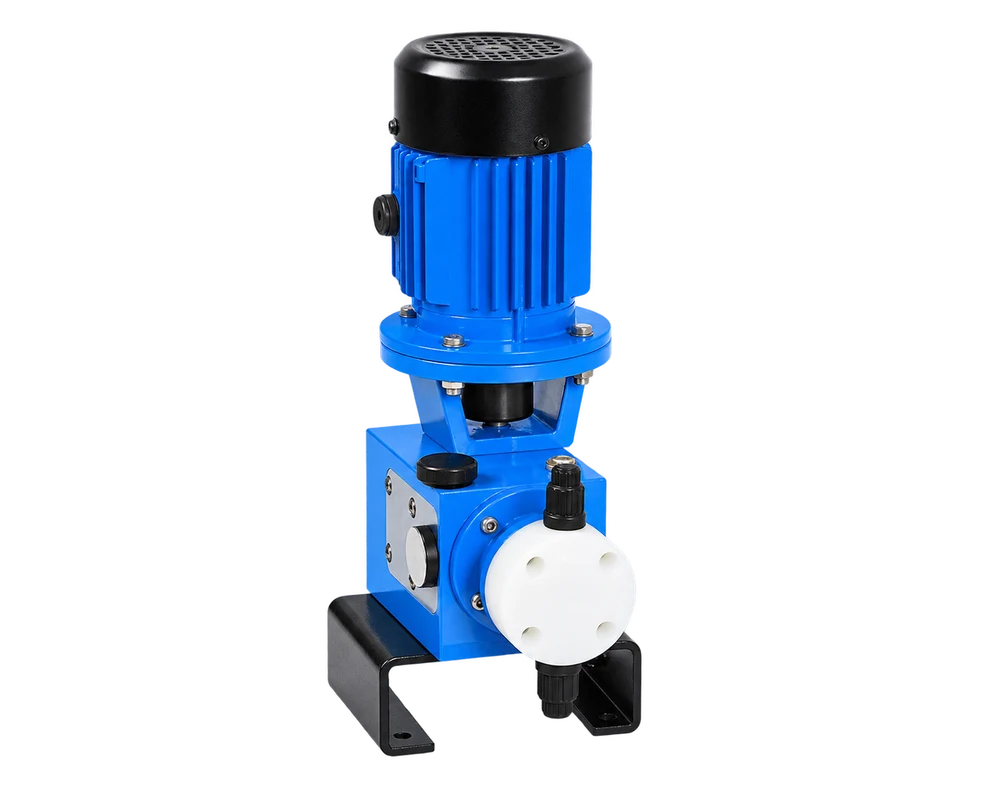

Small volume chemical metering with a PTFE diaphragm and liquid end materials selected for the reagent. Stroke adjustment allows dosing changes while the pump is running or stopped.

Listed capacities

10, 20, 30, 40 or 50 L/h

Listed pressure

5 kg/cm²

Stroke rate

100 strokes/min

Stroke adjustment

0–100%

Diaphragm

PTFE

Liquid end options

PP, PTFE, PVC or stainless steel

Control

Local manual; electrical/pneumatic remote options by selection

Applications
Metered chemical addition in water treatment and industrial dosing systems.

Select liquid end materials, stroke setting and control options against the actual reagent and required dosing duty.

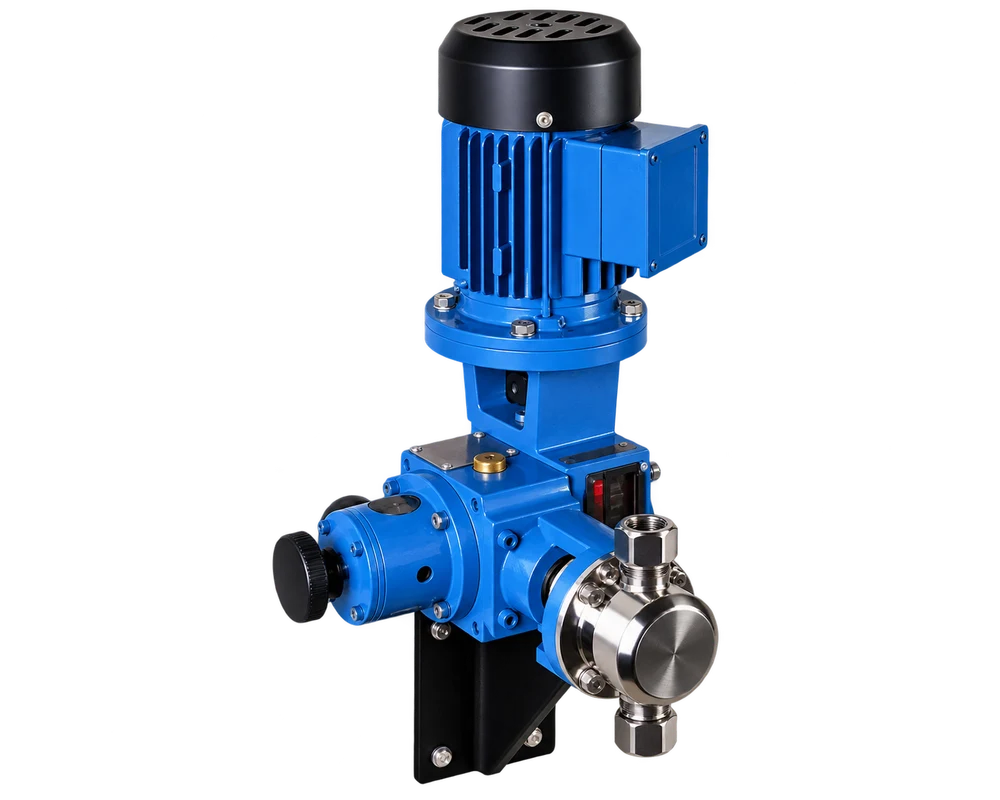

Plunger type dosing pumps for water and less aggressive media. Select the stainless steel liquid end and control arrangement against the actual reagent and required turndown.

Listed capacities

10, 20, 50, 100 or 150 L/h

Listed pressure

5 kg/cm²

Stroke rate

100 strokes/min

Liquid end options

SS304, SS316 or SS316L

Stroke adjustment

0–100%, running or stopped

Series

APV

Applications
Controlled dosing of water and supplier approved, less aggressive liquids.

Accuracy and control compatibility are subject to supplier confirmation.

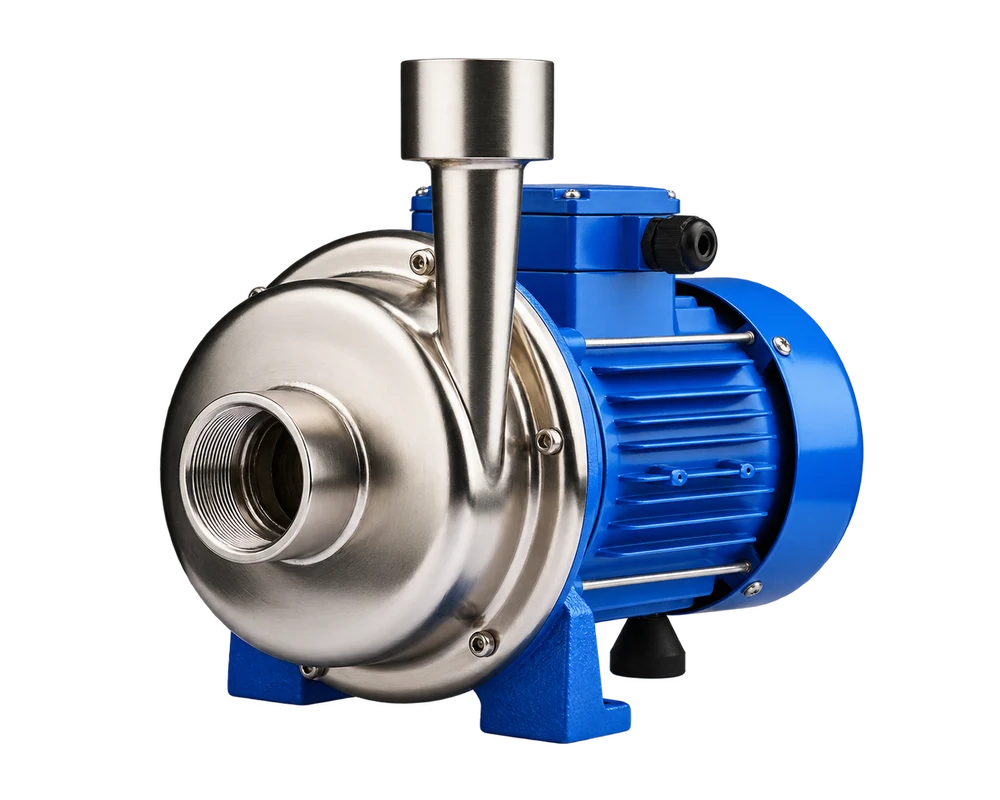

A smaller centrifugal range for light duty transfer and process cooling. Select materials for the liquid and use the supplier curve to establish the operating point.

Supplier listed capacity

500–8,000 L/h

Motor range

0.5–2 hp

Head range

2–20 m

Selection

Dependent on the model; confirm chemical compatibility

Applications
Light chemical duties, process cooling and water utilities.

Confirm the selected Eco model and its operating curve before ordering.

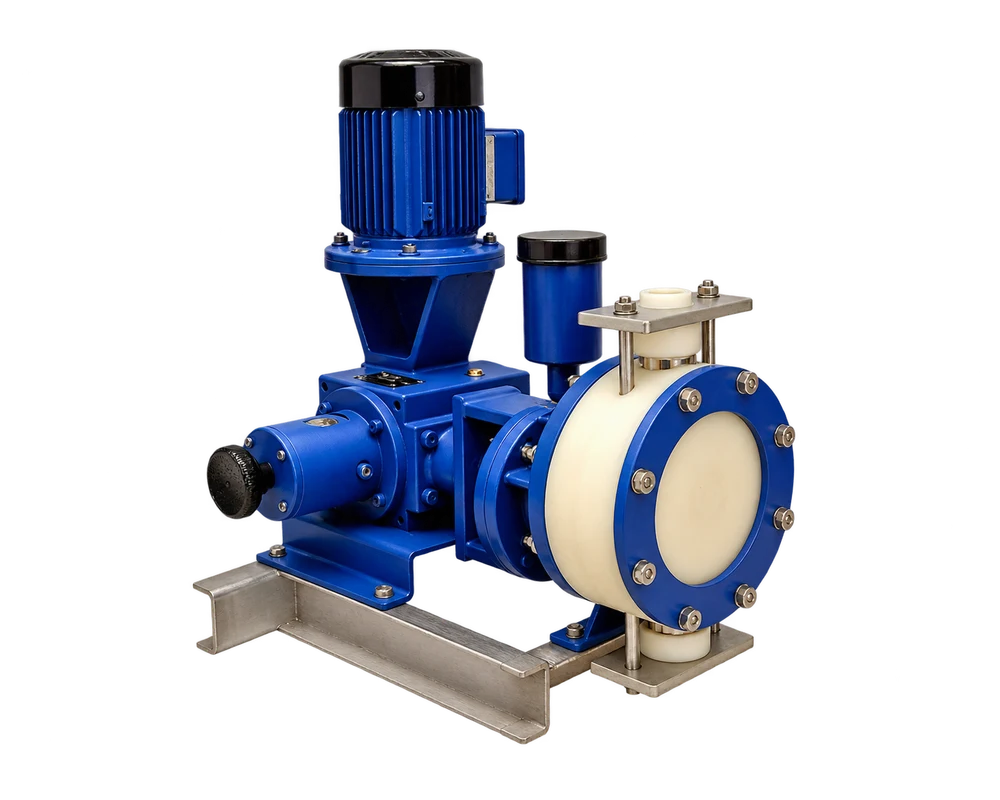

A hydraulically driven diaphragm separates the pumped liquid from the hydraulic drive. The liquid end, diaphragm and controls are selected for the chemical and dosing requirement.

Supplier listed family capacity

Up to 10,000 L/h; dependent on the model

Supplier listed maximum pressure

10 kg/cm²; dependent on the model

Liquid end options

PP, PTFE or SS316

Operating principle

Positive displacement, hydraulically actuated diaphragm

Selection inputs

Required dose, discharge pressure, reagent and control method

Applications
Chemical metering for water treatment and compatible process duties.

These family limits do not apply to the AMD and APV models above. Confirm capacity and pressure together for the proposed model; no API certification or universal chemical compatibility is implied.

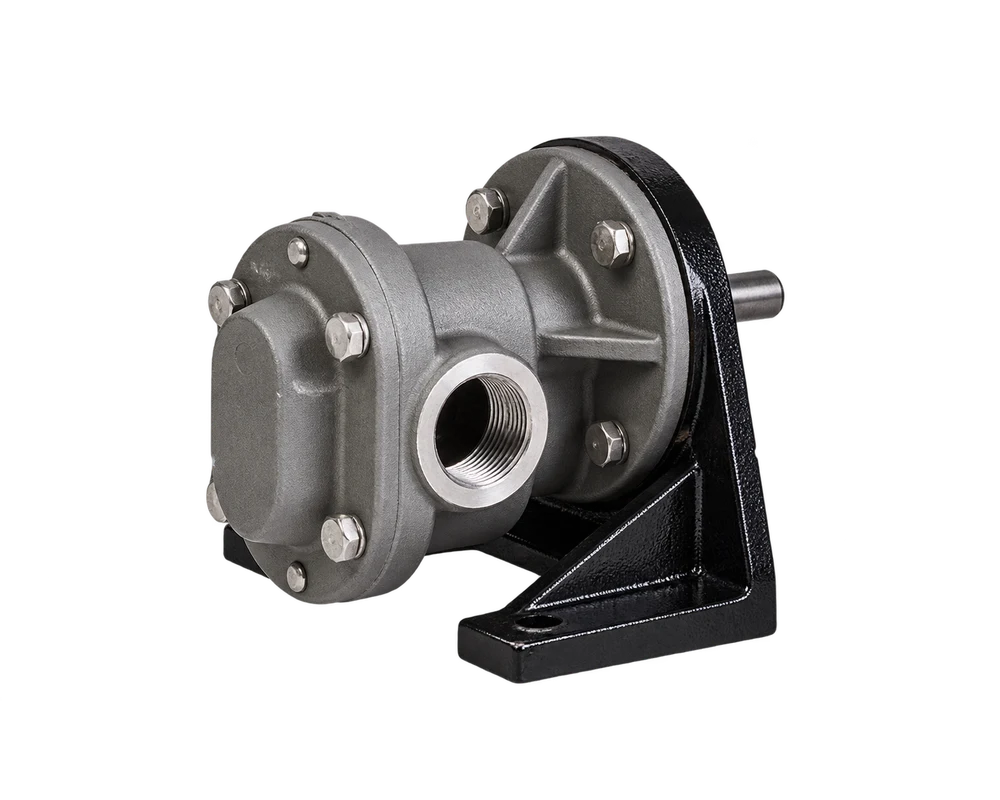

Gear pumps for oil and compatible viscous liquid transfer. Choose cast iron for suitable non-corrosive liquids or a stainless steel construction after checking liquid compatibility, viscosity and operating temperature.

Cast iron family capacity

Up to 500 L/min

Cast iron family pressure

Up to 10 kg/cm²

Cast iron temperature limit

Up to 90°C; special versions on request

Cast iron components

EN8 gears, EN9 shaft and bronze bush bearings

Stainless steel options

Investment cast SS316 or SS316L

Stainless steel sealing / bushes

PTFE seal and PTFE coated bushes

Stainless steel performance

Duty and model confirmation required

Applications
Oils, lubricants, syrups and other compatible viscous liquids; material and hygiene requirements checked individually.

The 500 L/min, 10 kg/cm² and 90°C figures belong to the cast iron family only, not the stainless steel variants. Confirm viscosity, inlet conditions and pressure relief provision before selection.

Match impeller form, shaft length and gearbox to the tank geometry and mixing objective. The range includes radial, anchor, marine, hydrofoil and multi blade impellers, plus flocculator and side entry arrangements.

Agitator power

Up to 10 hp

Standard impeller diameter

Up to 1,600 mm

Geared speed range

3–600 rpm

Shaft length

Up to 2,500 mm without a steady bearing; longer with support

Gear drive

Helical or worm

Motor and mounting

Flange TEFC motor; baseplate or flange mounting

Applications
Chemical preparation, flocculation and treatment tank mixing.

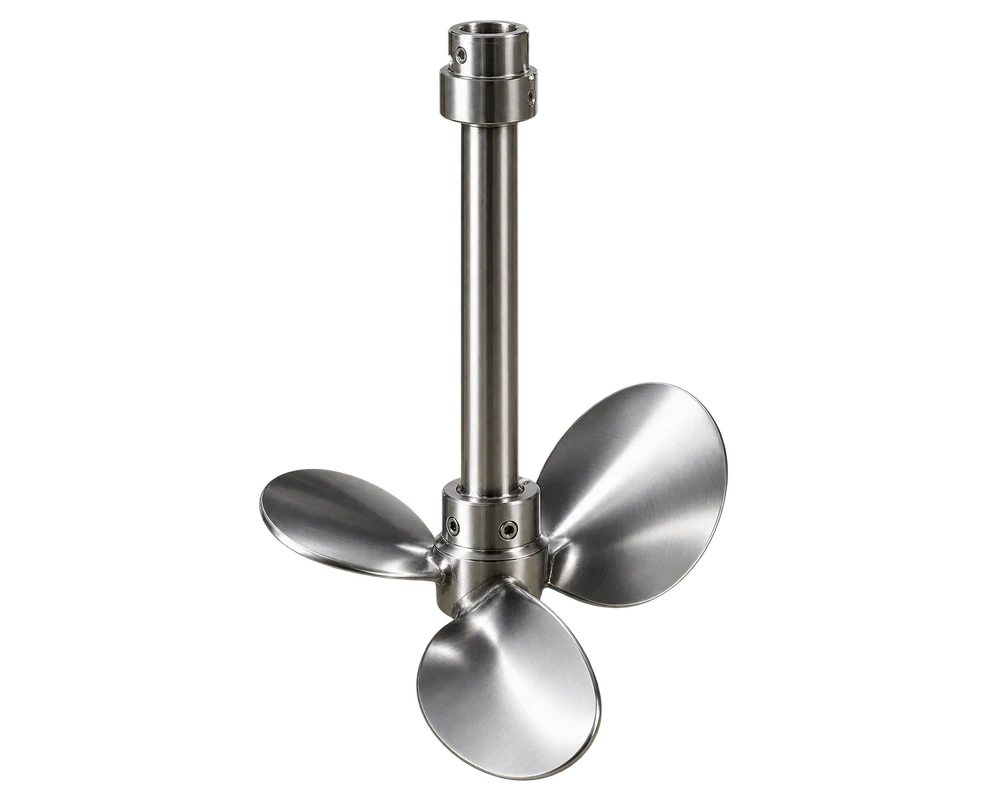

The image shows a marine type impeller component, not a complete geared agitator. Mixing performance depends on tank geometry, viscosity and impeller design.

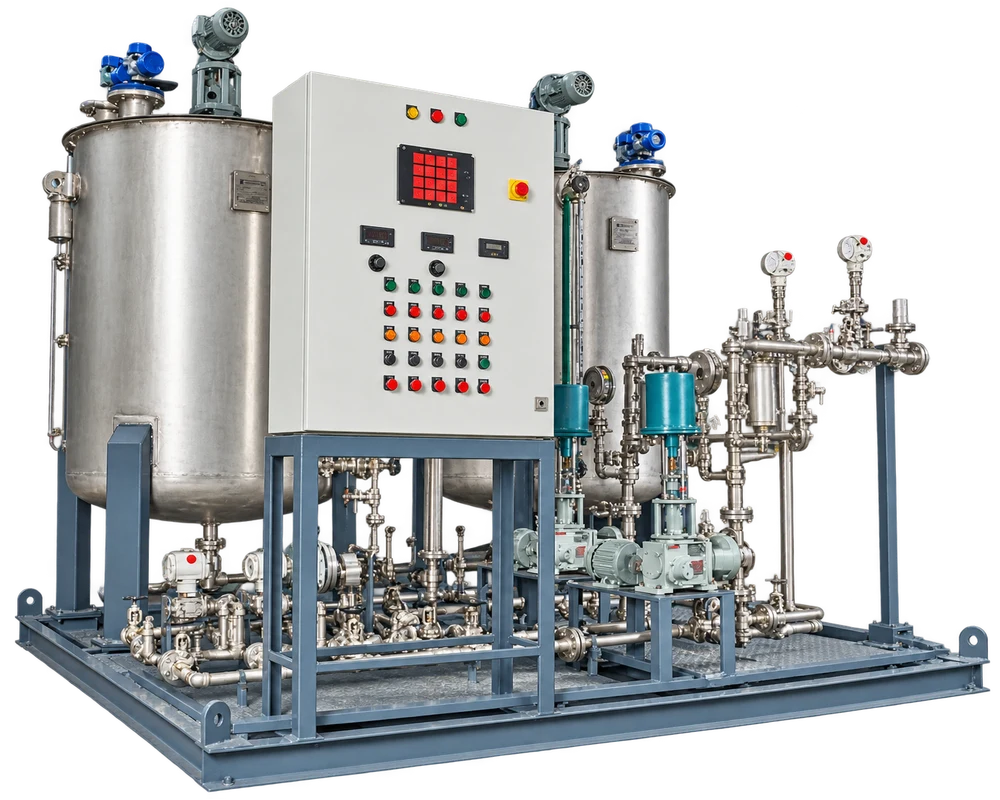

Bring the tank, agitator, metering pumps, pipework and controls together in one specified package. A dosing skid can serve a small utility installation or a larger treatment process, with the equipment selected around the chemical and dosing duty.

Package scope

Dosing tank, agitator, pump, pipework and selected controls

Supplier listed tank sizes

100, 200, 1,000 and 2,000 L; custom sizes up to 10,000 L

Tank material options

SS304, SS316, SS316L, MS or rubber lined MS

Control options

Manual or automated; PLC control by specification

Dosing capacity and pressure

Selected pump and process dependent

Design confirmation

Approved arrangement drawing and bill of materials

Applications
Compatible lime, hypochlorite, acid, boiler treatment and cooling water dosing duties.

The pictured skid is an example arrangement, not the configuration supplied for every order. Chemical compatibility, tank capacity, instruments and safety provisions are agreed for the project.
